Shadow Vision 40" light bar hidden integration kit Ford Ranger Raptor 2022+

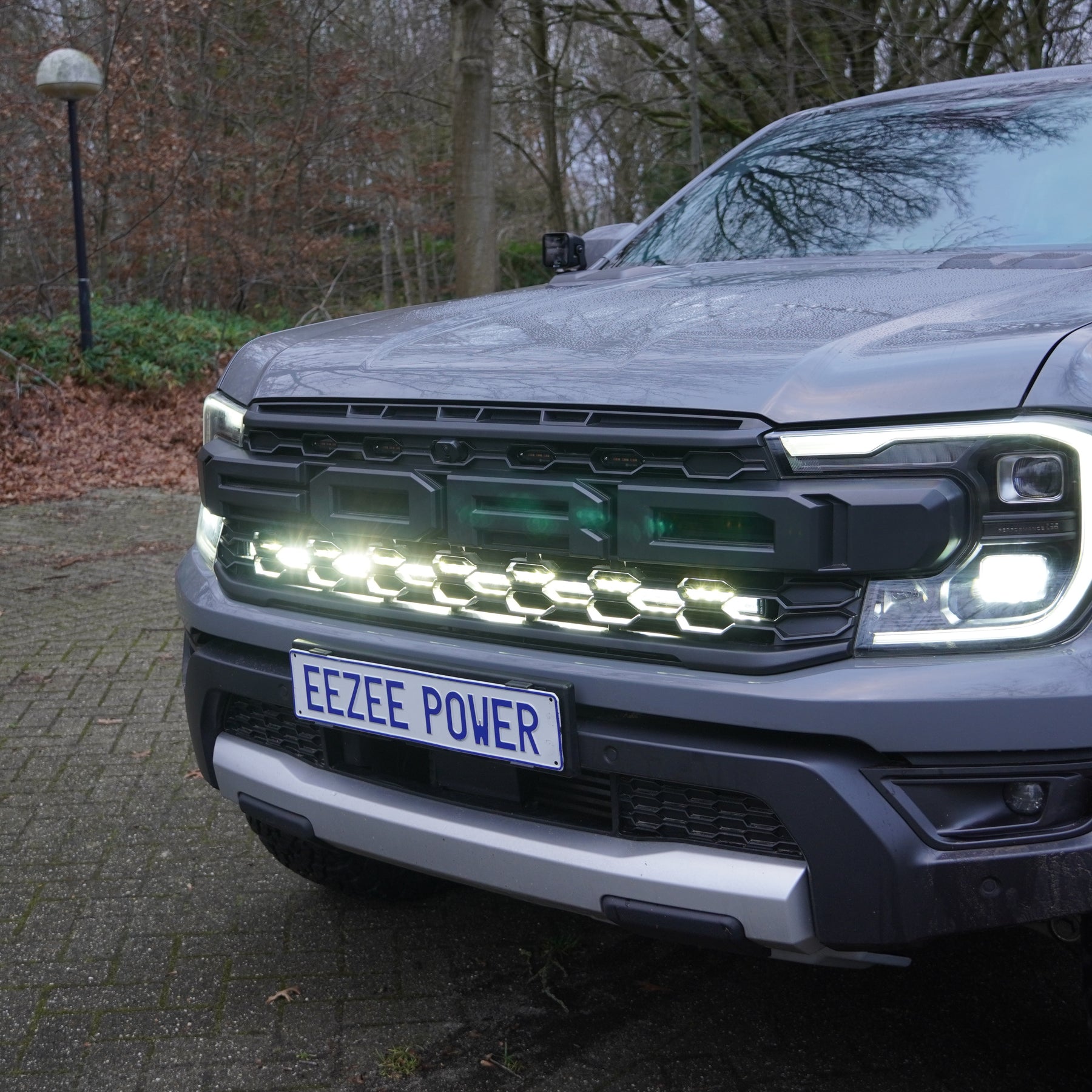

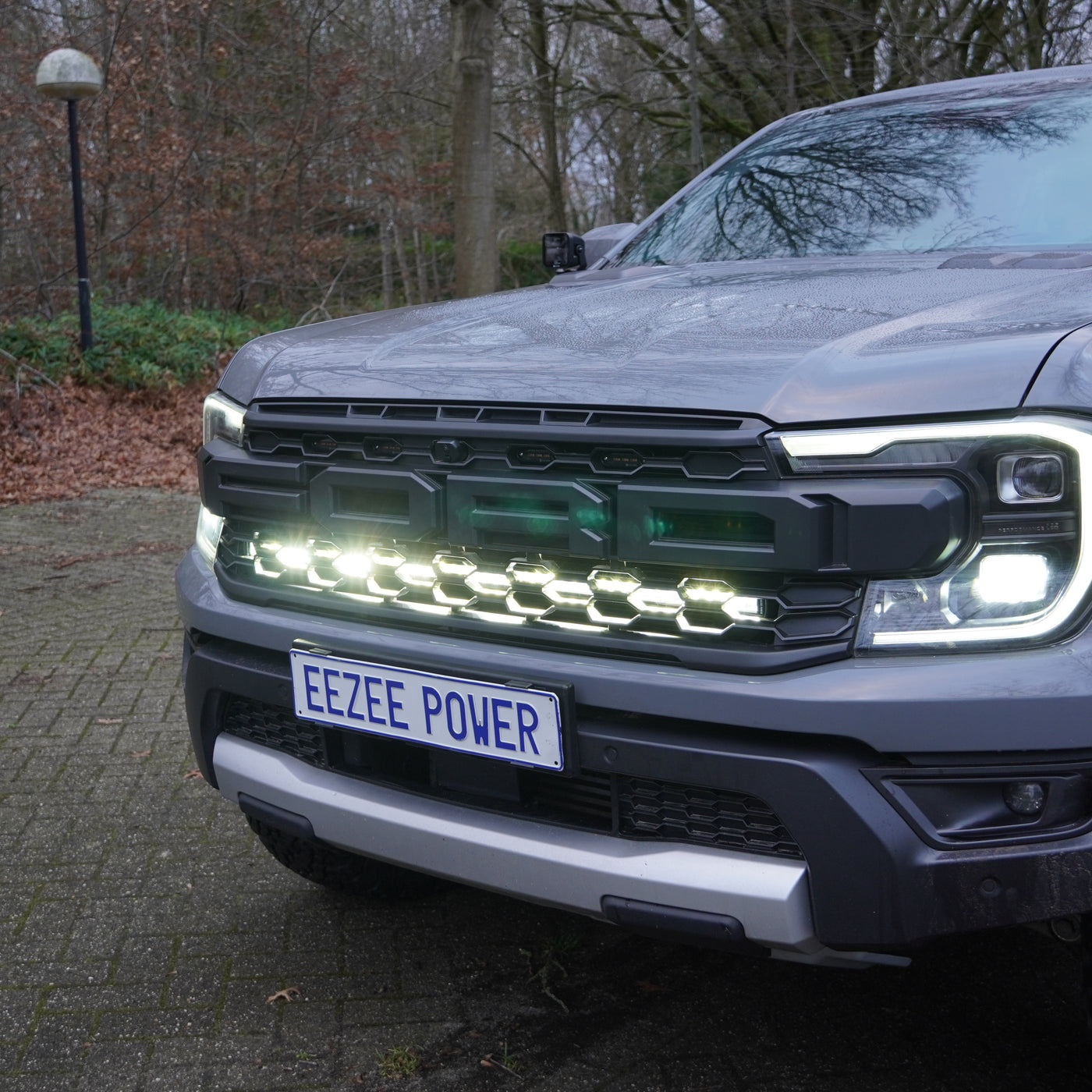

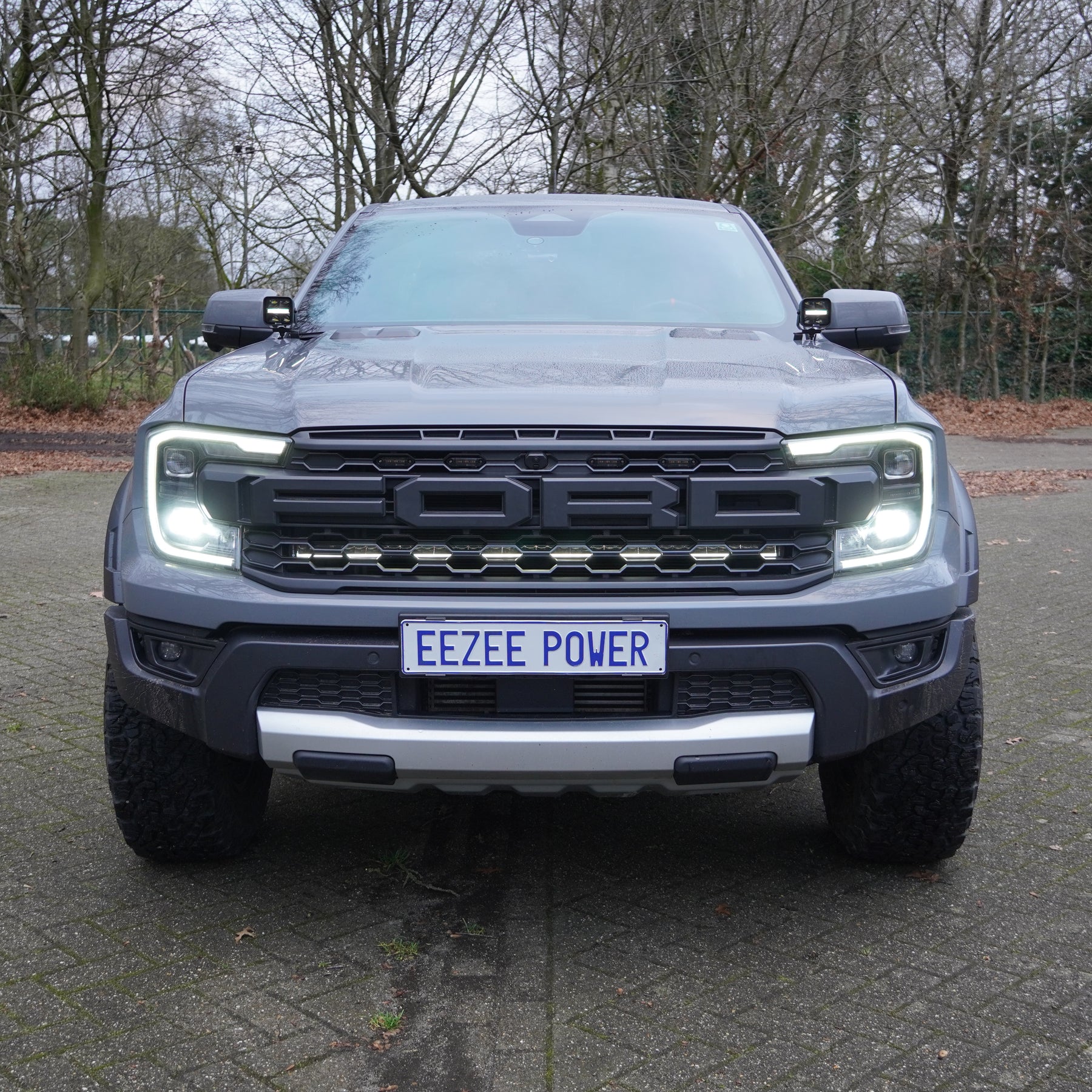

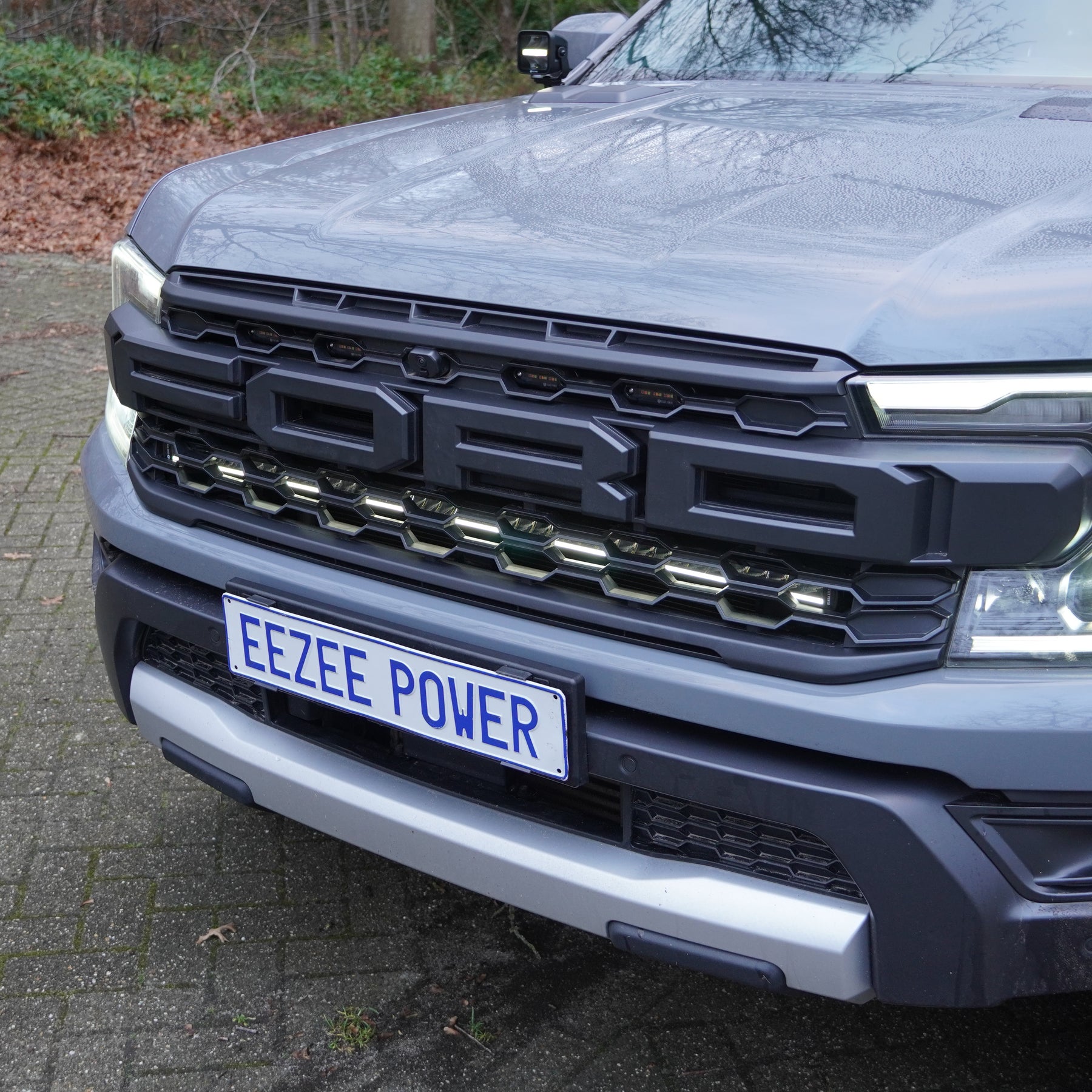

Elevate your Ford Ranger Raptor (2022 and newer) with the Shadow Vision 40" light bar hidden integration kit. This all-in-one solution provides powerful auxiliary lighting and a sleek, fully integrated look, keeping the light bar discreetly hidden behind your vehicle's grille.

What's included?

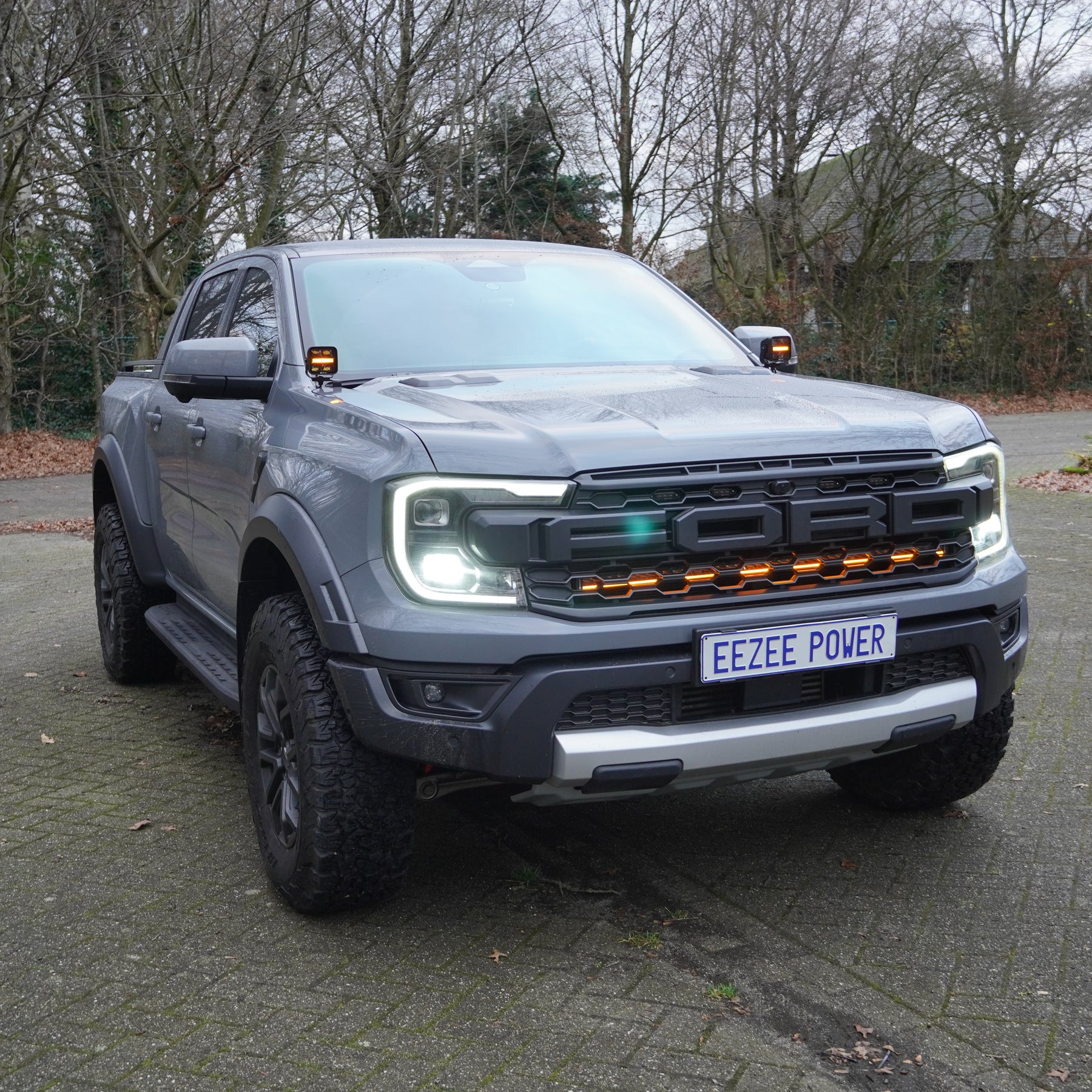

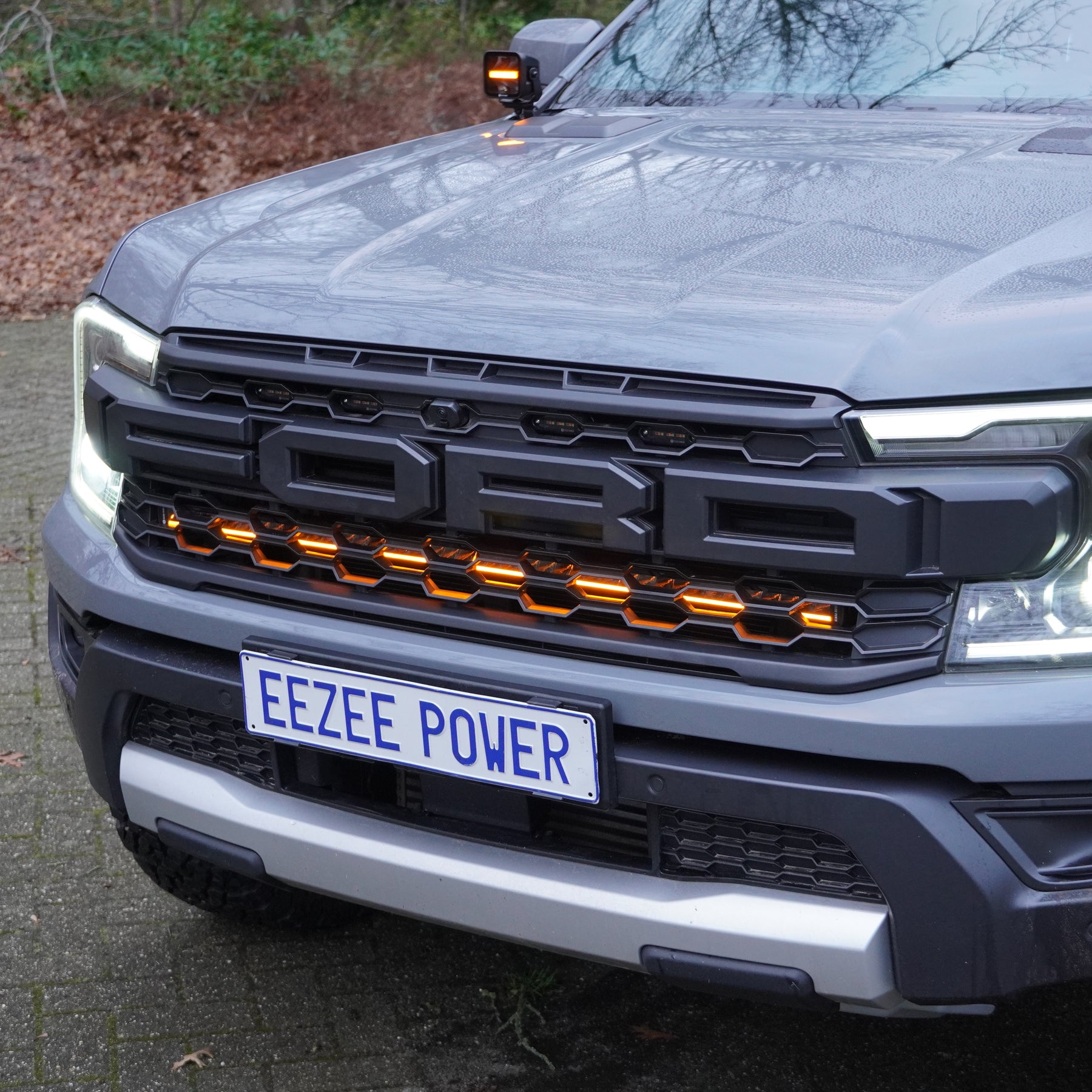

• Shadow Vision 40" light bar: Featuring a robust driving beam pattern for long-range visibility, delivering an impressive 17,640 lumens and a light intensity of 1 lux at 556 meters. This light bar also boasts a unique dual-color position light, ensuring you're seen and can see clearly.
• Mounting hardware: No bulky brackets are needed! This kit includes all necessary mounting bolts specifically designed for secure installation behind your vehicle's grille, ensuring a clean, factory-integrated appearance.
• Extension cable: A generous extension cable connects the light bar to your control panel, simplifying the wiring process.

Effortless installation

The Shadow Vision kit is designed for a straightforward, hassle-free installation, allowing you to quickly upgrade your vehicle without complex modifications.

1. Remove the grille: Carefully remove the existing grille from your Ford Ranger Raptor.
2. Trim plastic components: Trim any designated plastic parts behind the grille to create adequate space for the light bar.
3. Mount the light bar: Drill a hole in the mounting bracket provided and securely attach the 40" light bar to this point, ensuring it's positioned correctly behind the grille.
4. Connect wiring: Plug the cable into the light bar and connect it to your switch panel.
5. Test and reinstall: Once everything is wired and confirmed to be working, carefully reinstall the grille.

Superior performance & legal compliance

The Shadow Vision 40" light bar is not just powerful; it's designed for maximum light output while maintaining an OEM-like appearance and adhering to European regulations:

• ECE R7 / R148 Compliant white position light: Ensures legal operation as a front position lamp.
• ECE R10 EMC certified: Guarantees electromagnetic compatibility, preventing interference with other vehicle electronics.
• Two power modes (ECE R112 / R149 Compliant):
  Driving beam mode: Meets stringent European ECE regulations for on-road use.
  Off-Road full power mode: Provides the impressive 17,640 lumens and 1 lux at 556 meters for situations where maximum light is needed and legal to use, cutting through the darkest conditions.

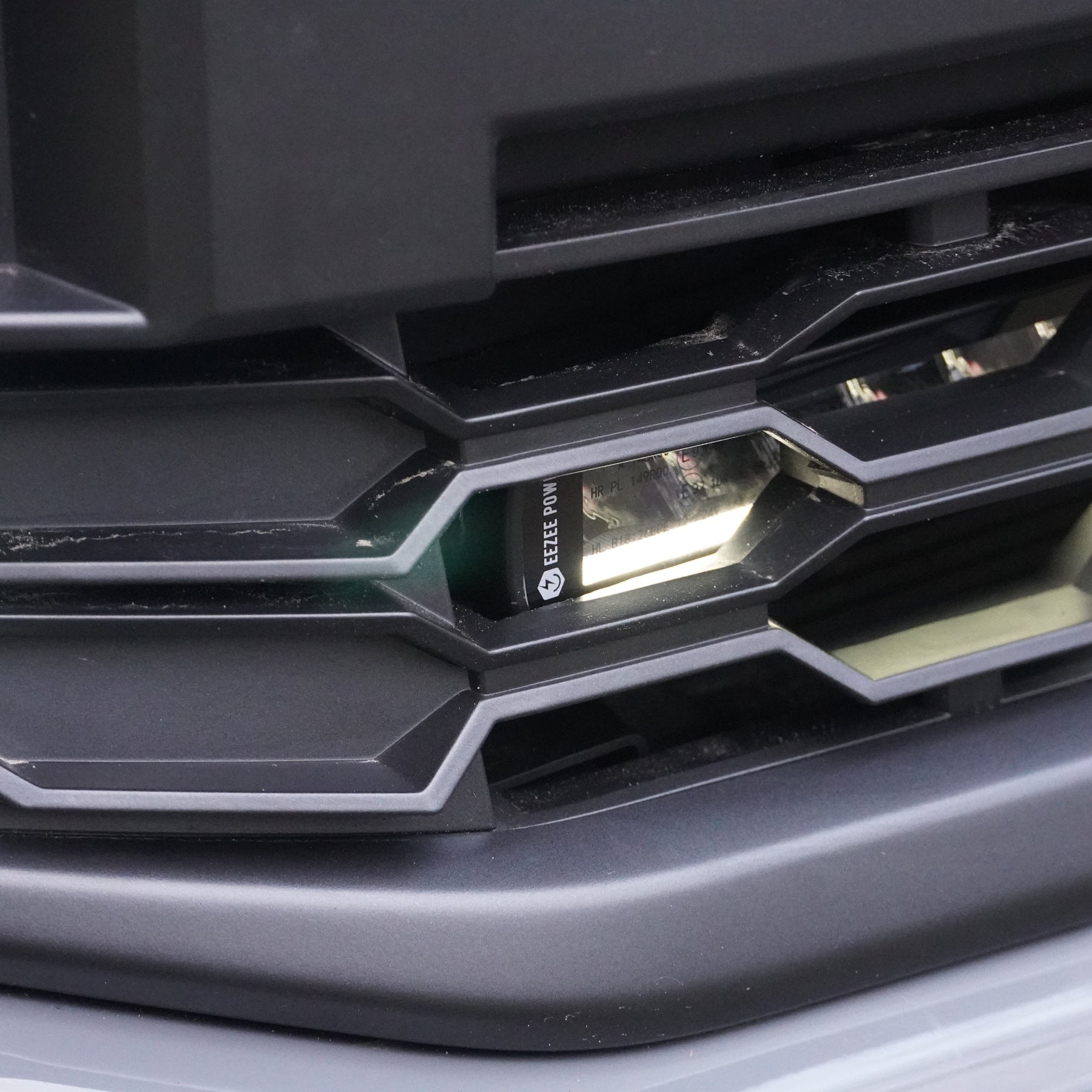

• Hidden design: The innovative mounting system places the LED bar discreetly behind the grille, maintaining your Raptor's rugged factory look.

Important note:

• The front grille of your vehicle is not included with this kit. This integration kit is designed exclusively for the grille type shown in our product images. If you have any doubts about compatibility, please contact us at info@eezeepower.eu before purchasing.
• A switch panel and/or control system is not included.
• Please remember to check your local regulations regarding additional lighting and how it should be connected.
